Wiring: OUTPUT + LOAD +, OUTPUT TO LOAD; INPUT A+ TO BAT+, INPUT TO BAT.
Observe:
* By no means hook up with photo voltaic panel, PWM/MPPT cost controller, inverter or wind turbine.
* By no means use for charging. Keep a very good air convection.
* By no means reverse the polarity.
* Please use the big sufficient wire to keep away from voltage drop.
Specs:
Enter Voltage Vary: DC 40V-90V
Output Voltage: DC 12V 10A
Rated output energy: 120W
Effectivity: 97% (half load); 95% (full load)
Ripple: 200mVp
Line regulation: ± 0.2%
Load regulation: ± 0.2%
Voltage Accuracy: ±1.5%
Circumstances: IP68.
Working temperature of the field: -40 ~ 85 ℃
Weight: 380g
Options:
1. 100% full energy and secure present output, non-isolated module.
2. Industrial grade converter DC 40V-90V to DC 12V, effectivity as much as 95%.
3. Die-cast aluminum housing, epoxy pot, out of doors convection cooling; IP68 waterproof degree and anti-shock safety.
4. Protections: Over present, over voltage, over temperature, overload and brief circuit, automated restoration when the gadget returns to regular operation.
5. Certificates: CE/RoHS, 1 yr guarantee, lifespan as much as 100,000 hours.
Package deal contains:

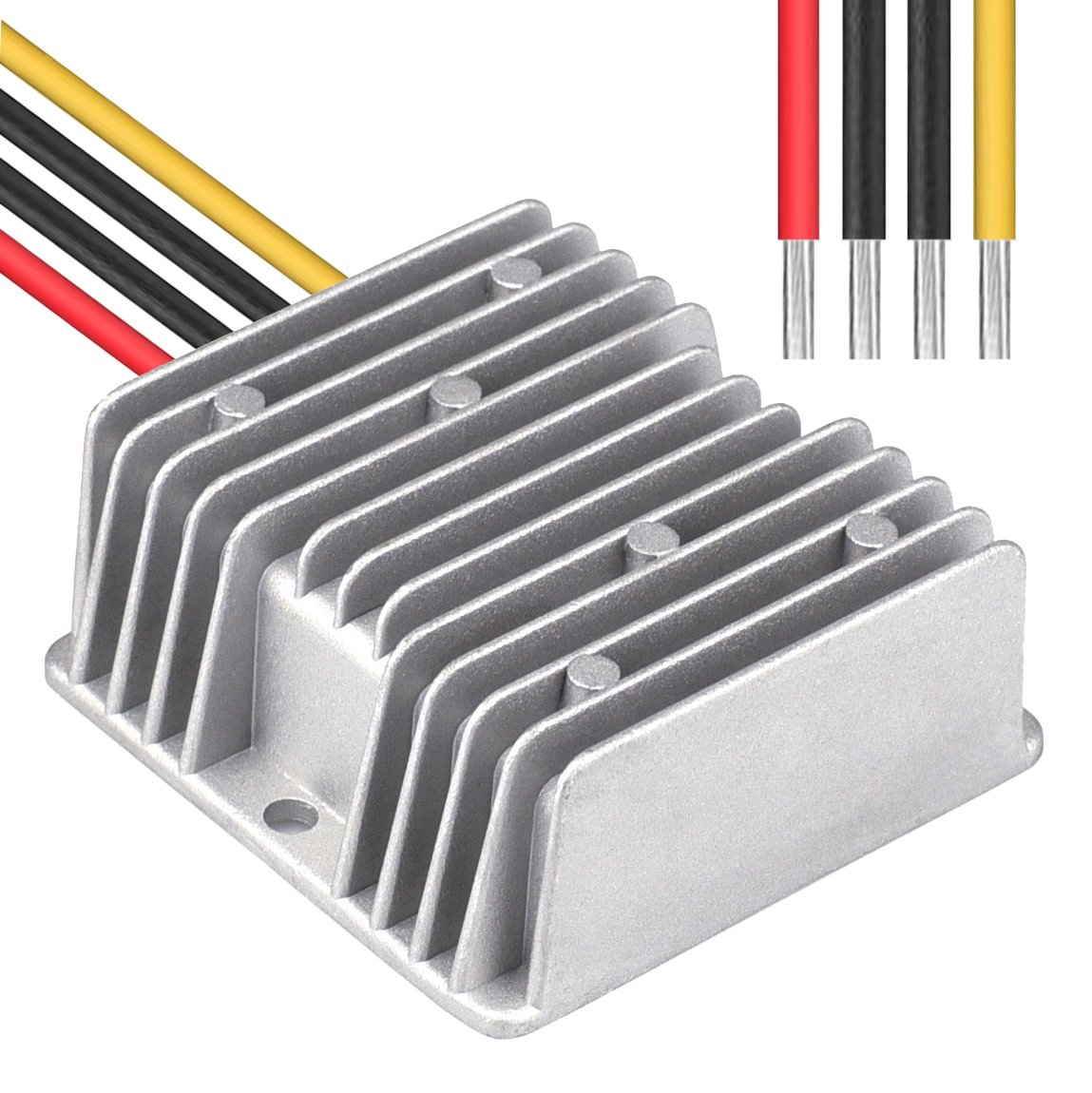

1 x DC 40V/90V to 12V 10A Converter
Questions:
How to decide on the fitting present for hundreds?
For instance, if the utmost present of your charging gadget is 10A, please select 10A/0.8=12.5A at the least for resistive hundreds in accordance with worldwide normal.
If the charging gadget is motor or compressor, then you’ll be able to select 10A/0.5=20A in accordance with the precise take a look at end result, because the beginning present of the motor and compressor might be 2-3 instances than the rated present.
Enter voltage vary: DC 40V-90V; Output voltage: DC 12V (not adjustable); Output present: 10A; Output energy 120W.
Excessive conversion effectivity: synchronization rectification know-how, a number of clever safety operate with excessive conversion effectivity and stability. The conversion effectivity can attain 95%.
Protections: Overload, Over present, Over temperature, Brief circuit, Over voltage.
Aluminum shell and silicone sealed design: waterproof, anti-shock, anti-moisture and dustproof, extra sturdy.
WIDE APPLICATION Giant vans, golf cart, membership automobile, taxi radio, emu, automobile audio, LCD TV, promoting show, LED strip lights, monitoring system, digital methods and DIY, and many others.
